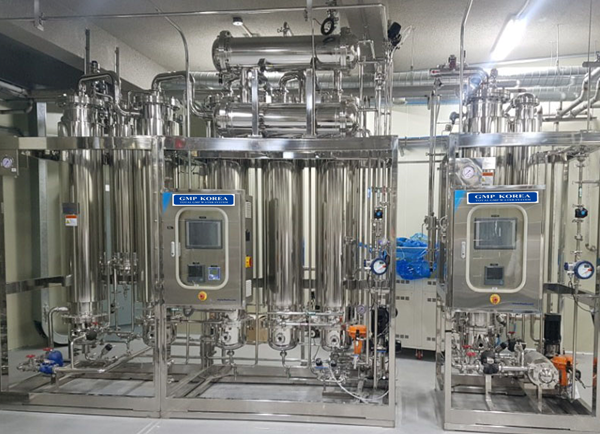

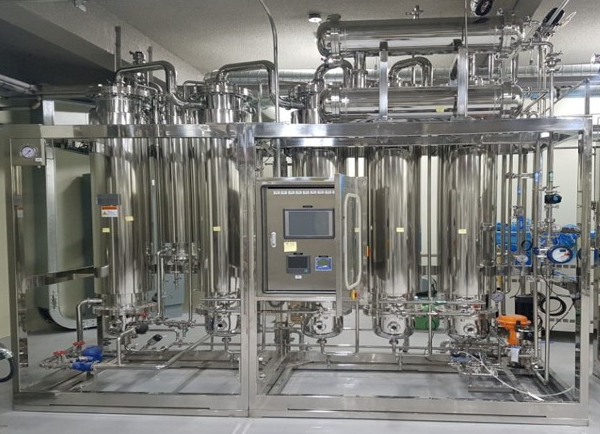

WFI & Pure Steam Generation

● Quality : USP & EU GMP Standard

● Capacity : User Requirements XXXX.X liter/hr

· 5 Column Fully Automatic Control by PLC

· Plant Steam 7bar, Proportional capacity control

· Wetted Part Surface Finish : Ra ≤ 0.6 ㎛

· CFR21 Part 11 & GAMP 4 Application

- Secret Protect Password

- Software Validation

· Ethernet Communication processor (HMI SYS)

· FAT/SAT/IQ/OQ Service

· Spare Parts

· Conductivity/Temp/Flow/Pressure/TOC

· STS Frame & Control Cabinet

● Quality : USP & EU GMP Standard

● Capacity : User Requirements

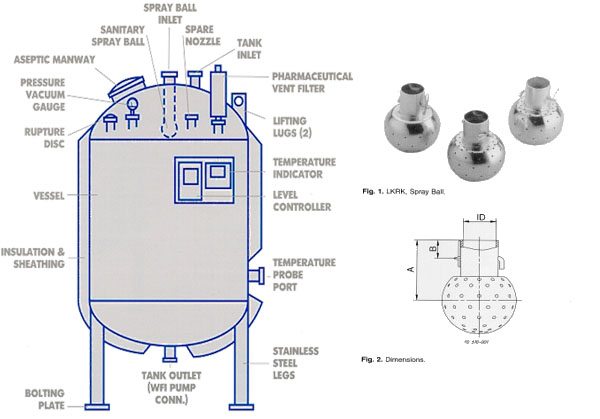

WFI Storage & Distribution

● Quality : USP & EU GMP Standards

● Capacity : User Requirements XX.X㎥

· Surface Finished Less Ra 0.6㎛

· Spray Ball, Aseptic Type Manhole

· 0.2㎛ Hydrophobic Microfilter w/Heating Jacket

· 316L Stainless Steel

· Hygienic Diaphragm Level Sensor

· Sanitary Tri-Clamp Connection

· FDA Approved Material Gaskets

· 1 Continuous Circulation Loop

· Hygienic Pump

· Double Shell Heat Exchanger (heating & cooling)

· Conductivity/Temp Monitoring & Alarm (<1㎲/㎝)

· Flow Rate/Water Velocity Monitoring (at peak >1m/sec)

· Flow Rate Control (Inverter Control)

· TOC Monitoring & Alarm ( <300 ppb)

· 80℃ Hot
